FISH SMARTER - ABOVE AND BELOW THE WATERLINE

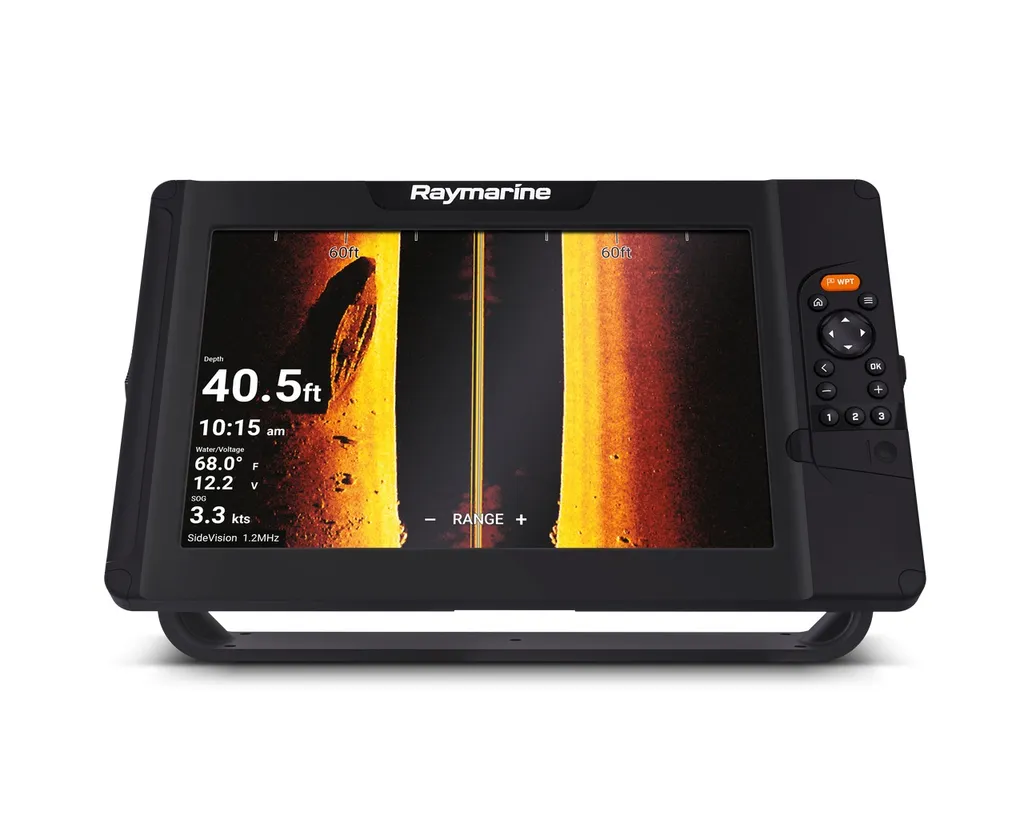

Knowledge is power—and the Element™ CHIRP Sonar / GPS series from Raymarine gives you the upper hand when hunting for fish and their habitat. Delivering the sharpest view of the underwater world, Element’s HyperVision™ 1.2 megahertz sonar technology, turns up the resolution of DownVision, SideVision, and RealVision 3D to a new level of precision imaging and fish identification, letting you see structures, vegetation, and fish with amazing life-like clarity

Bright and Rugged
Sunlight viewable displays with integrated GPS/GNSS receiver.

Superior HyperVision
1.2 megahertz CHIRP sonar technology delivers much higher resolution imaging compared to conventional side and down scanning sonars.

All-in-one Transducer
Combines HyperVision, DownVision, SideVision, RealVision, and conventional CHIRP sonar channels into one simple installation.

RealVision 3D Built-In
Accurately identify the location of ledges, channel beds, and other contour changes.

Fast Quad-Core Processor
For instantaneous chart re-draw and sharp 3D imaging.

Simple LightHouse Sport Operating System
Optimised for fishing, the LightHouse Sport OS is fast and easy-to-learn

Intuitive Controls
An oversized waypoint key for marking your favourite spots and three user-programmable keys.

Smart Mapping
With Support for Raymarine LightHouse NC2 charts with Fishing Hot Spots, Navionics and C-Map

Make Your Own Maps
Raymarine RealBathy personal sonar mapping and Navionics SonarCharts Live support.

HyperVision

HyperVision uses super high frequencies (1.2 megahertz) and CHIRP technology to bring a new level of precision imaging to DownVision, SideVision and RealVision 3D

1.2 megahertz HyperVision mode is optimized for super high-resolution imagery up to 100’ (30 meters)

Switch to standard 350 kHz CHIRP sonar for longer range, high-resolution imaging, and ranges up to 600’ (180 meters)

Element’s advanced CHIRP sonar also operates in the high-frequency 200kHz range for fish targeting, high-speed bottom tracking, and depths up to 900ft

HyperVision CHIRP Transducers
The all-in-one design of Element's HyperVision transducers make them compact and easy to install. Raymarine offers convenient transom mount and thru-hull options to fit any boat.

New Transducers:

HV-100 All-in-one transom mount transducer

HV-300TH All-in-one plastic thru-hull transducer

HV-300THP All-in-one thru-hull transducer pair for deep v hulls
