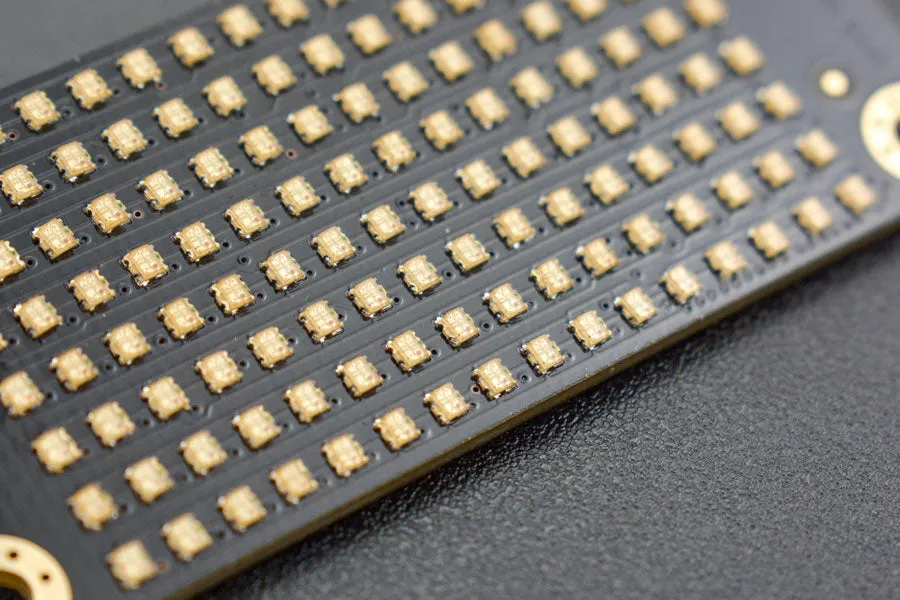

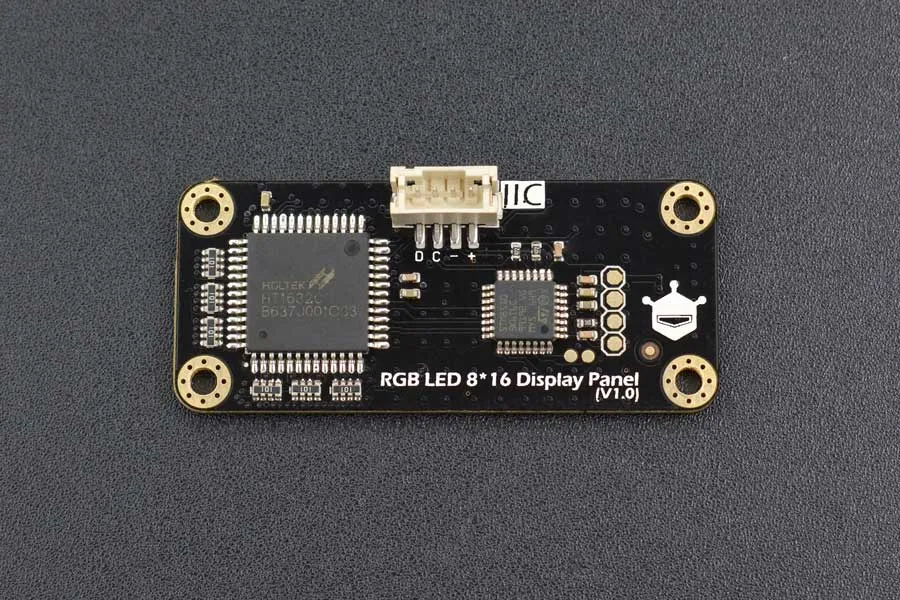

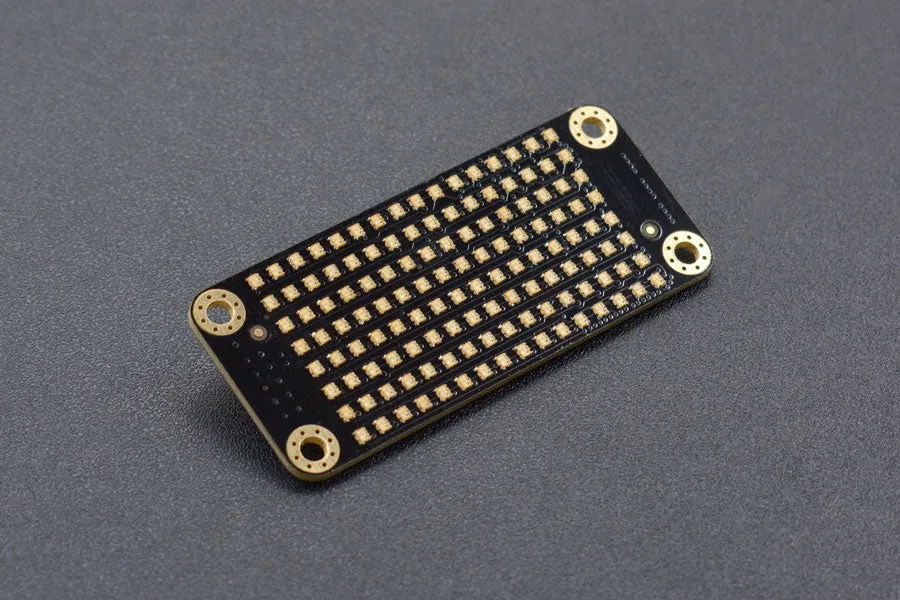

Single color dot matrix LED displays are common in the market while small RGB displays are in short supply. This Gravity: I2C 8x16 RGB LED Matrix Panel produced by DFRobot has 7 colors and more than 20 images in default, supporting user-defined image setting. It can also show Numbers, Letters and Symbols, and support display scroll. Controlled by IIC agreement, Gravity: I2C 8x16 RGB LED Matrix Panel is easy to connect and convenient to control. Just a special Arduino library can accomplish all designs, which totally free from complex wiring and codes. It can be widely applied to projects like robots, smart home monitoring systems and toy cars…

Specification:

Operating Voltage: 5.0V

Operating Current: ≤150mA

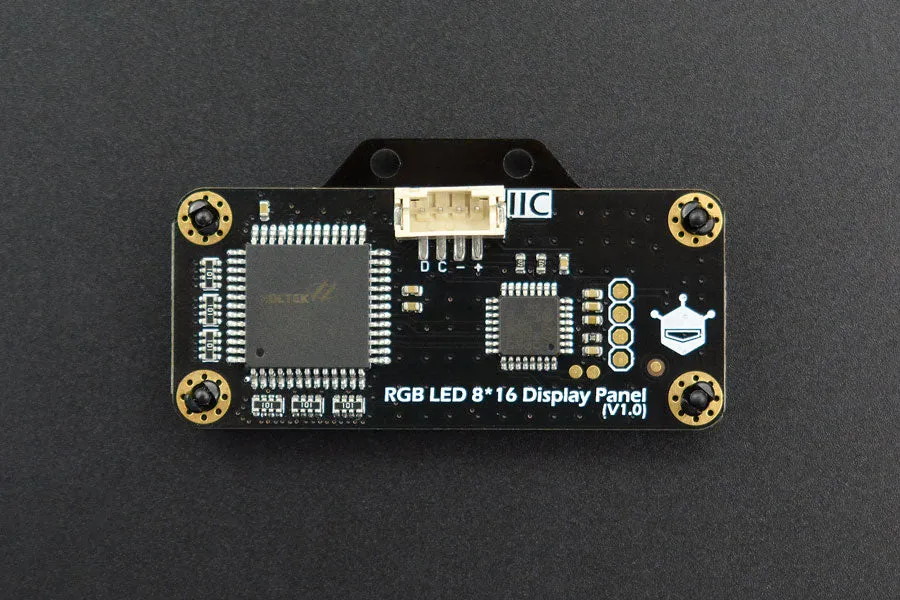

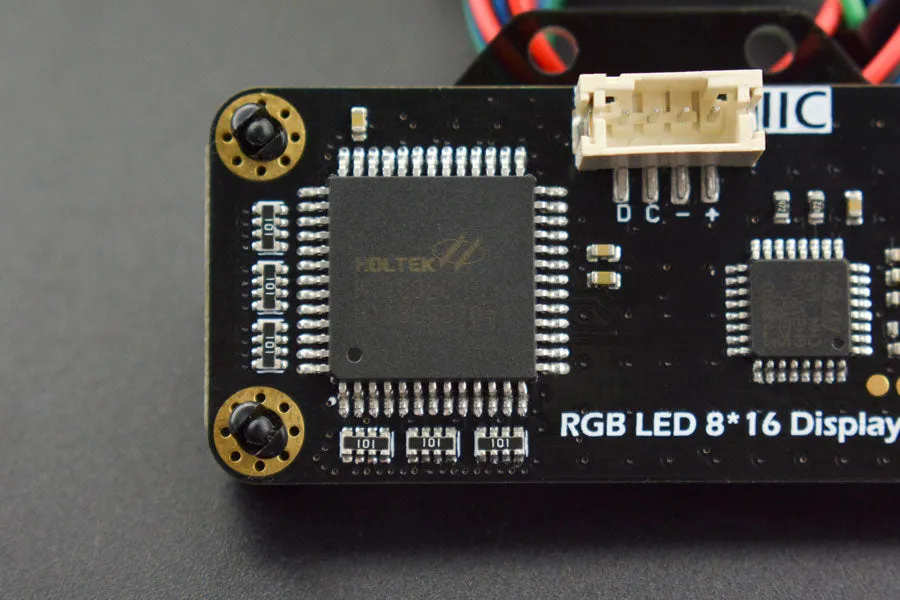

Communication: IIC/I2C (PH2.0-4Pin)

LED Backlight: RGB Adjustable (7 colors)

Operating Temperature: 0-70℃

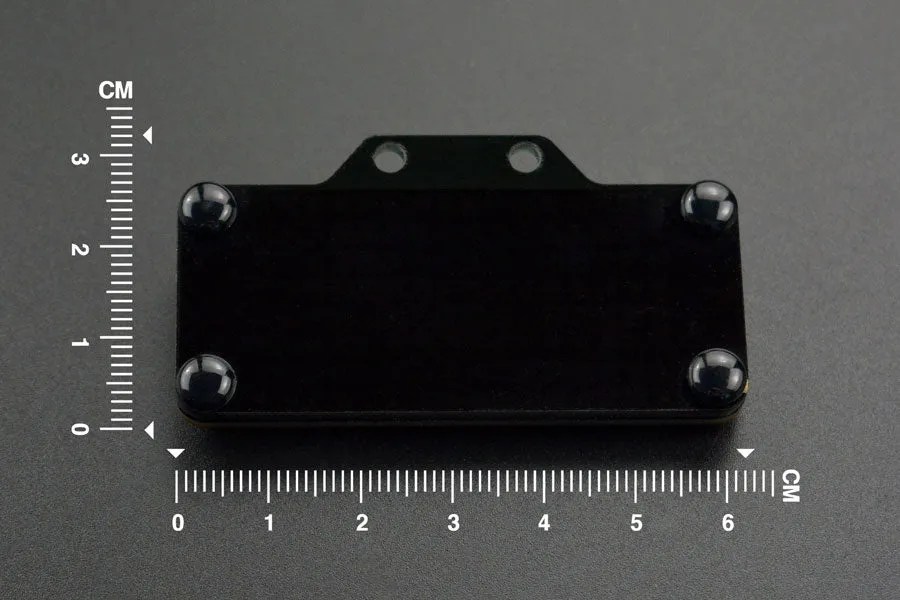

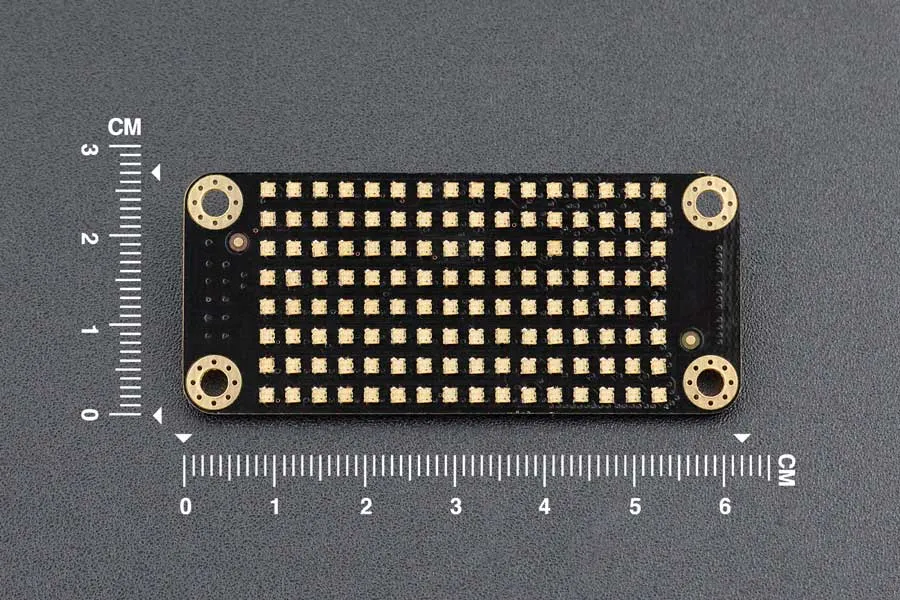

Size: 2.44in x 1.06in (62mm x 27mm)

Documents:

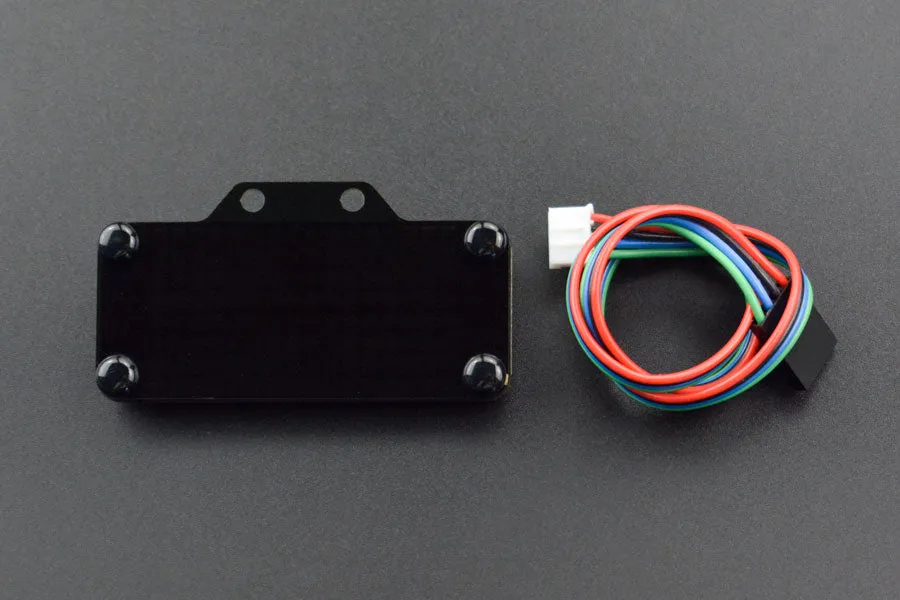

Product Includes:

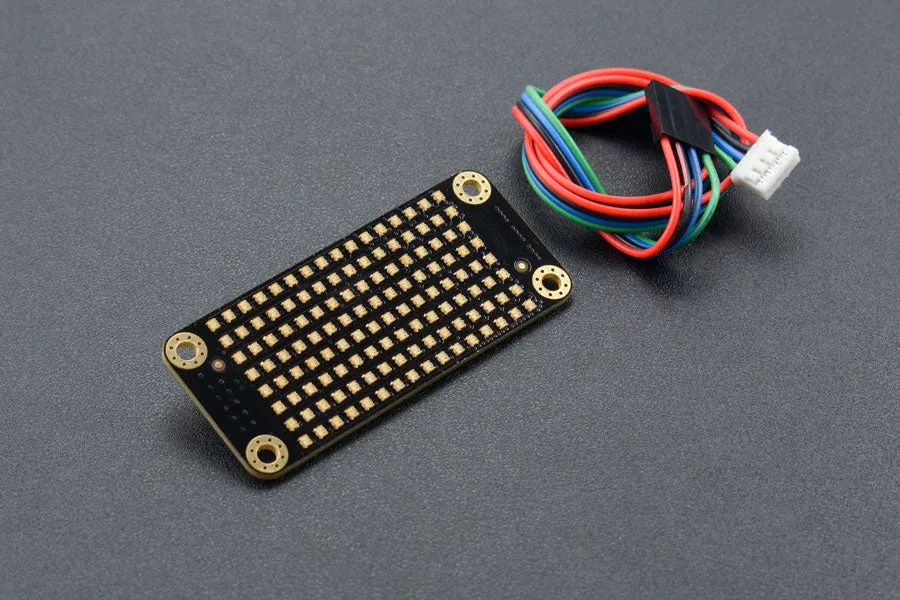

Gravity: I2C 8x16 RGB LED Matrix Panel x1

Gravity I2C/UART sensor cablex1
