Name: Low Voltage Pro Video Test Module -(VTM-KIT)
SKU: 242131

Product Details ＋

DESCRIPTION

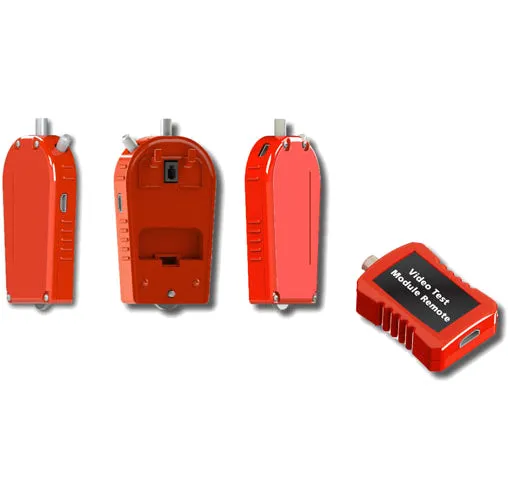

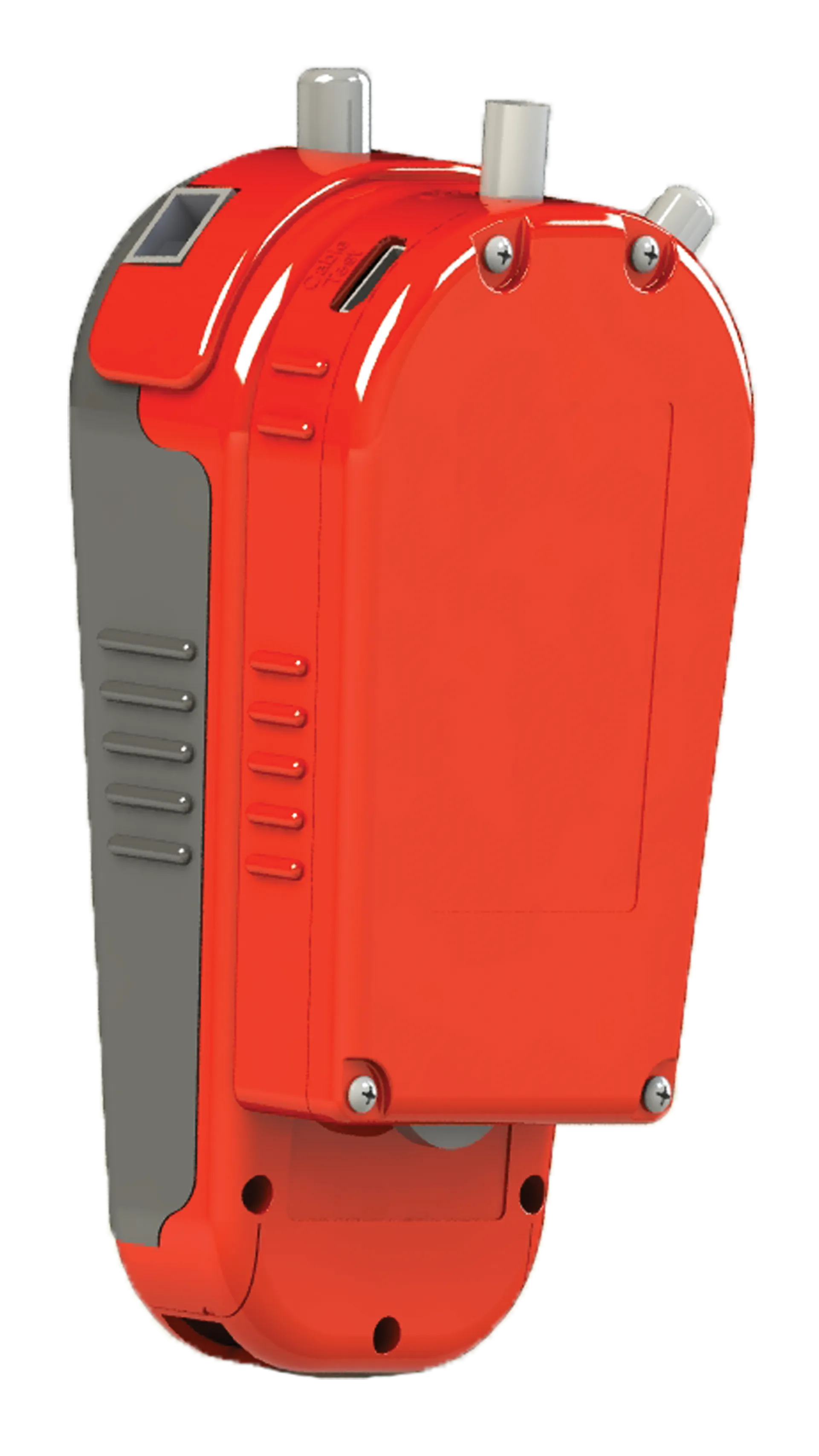

The Triplett Video Test Module (VTM-KIT) for the LVPro Model 20, 30 and 30SR extends the test and diagnostic capabilities of your LVPro cable tester by simply attaching the expansion connector harness in the LVPro cable tester to the module, and then securing the module to the tester. No additional software updates are required. With this new and powerful test module HDMI cable and Coax cable testing can be done.The VTM allows you to perform HDMI cable testing and type identification with the included Video Remote Unit, generate a VGA resolution test pattern for checking monitor connections, and perform a basic DDC Channel test with HDMI cables. The VTM also enables you to perform RF signal level measurement test on RG6/RG59 type coaxial cables with either F-type or BNC terminiations, as well as to perform dB loss measurements and coaxial cable installation mapping with numbered Video Remotes. Comes with 1 numbered remote for HDMI and dB loss testing. Up to 3 additional remotes (PN: VTM-2R/VTM-3R/VTM-4R) can be added.

CATEGORY:

Features

Works with LVPRO 20, 30 and 30SR

Test Coax and BNC cables for signal level and loss in dBmV

Map transmitters on RG6, RG59 and BNC cables

Generate color bar test pattern on HDMI displays and identify cable quality

Product Overview

About Triplett

Founded in 1904, U.S.-based Triplett Test Equipment continues to be on the leading edge of specialized testers. Whether supplying vital test equipment to the U.S. Signal Corps during WWII, or providing the railroad industry with essential testers to ensure the safety of their crews and the public, Triplett prides itself in developing innovative, reliable, and durable test equipment for every technician--that also won’t break the bank.

Video Test Module

For Verifying Cable TV & Cable Internet Signal Quality

For many people, cable TV and Internet problems feel like an eternal plague. The Video Test Module piggybacks on our LVPro 20 / LVPro 30 / LVPro 30SR testers, expanding the tester’s capabilities to let you test the signal quality coming from your Cable Service provider. Once you have verified the signal from the cable company is good, you can use this tester to test the COAX cables inside your house. If you still haven’t found the problem, you can go the final mile of testing by verifying the HDMI cables are working the way they should be! All in one handy, low-cost add-on tester.

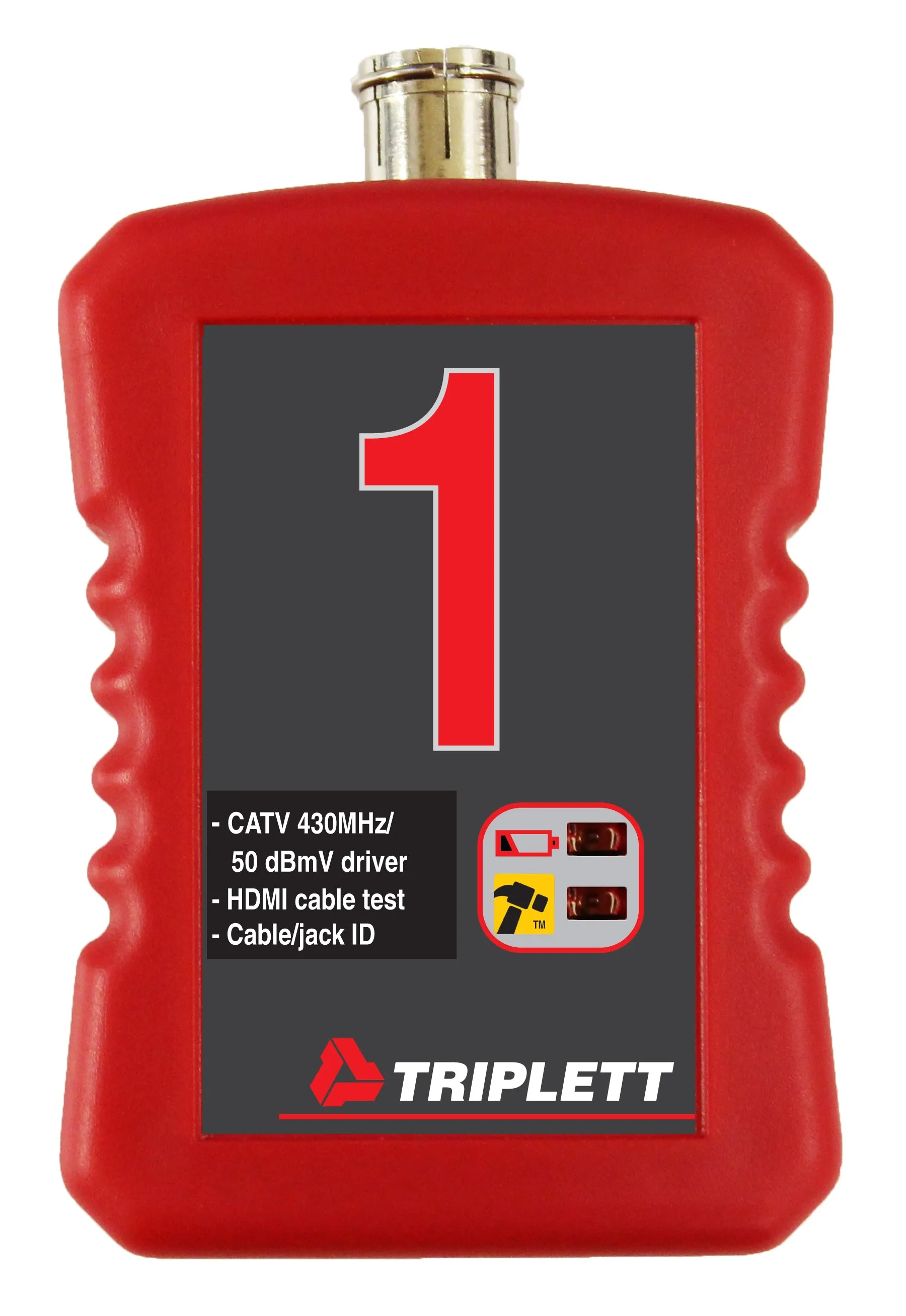

Isolate Problems Fast Test COAX, BNC, and HDMI cables for signal level and loss in dBmV.	Verify that You’re Getting What You Paid For Check the signal quality coming directly into your house from your Cable Company. Prove the signal quality is (or isn’t!) up to standard.	Find the Cable Nothing marked in the basement? Just a bunch of wires hanging? The VTM comes with a Remote so you can test cables and map them.

Choose the LVPRO Cable Tester That's Right for You



Cable Test Pack (All Types) and Length Pack	✓	✓	✓
Wall Jack ID	✓	✓	✓
Speaker Popper and Speaker 7.1 ID# Mapper	✓	✓	✓
Tone Cable Detection and Return Loss Quality	✓	✓	✓
Port Blink Cable Detection and Alert LEDS (Links, Volts)	✓	✓	✓
10/100/1000 Detection/Display		✓	✓
PoE/Pairs, Phone, and Loaded Battery Tests		✓	✓
CCTV/Vpp (peak to peak voltage)		✓	✓
Print Up to 250 Reports		✓	✓
8 Smart Remotes			✓

Specifications

Cable Types Tested (All LVPRO models)	Shielded and unshielded twisted pair. All cable categories Coax. All types Telephone, speaker and alarm wire
Cable Tests (All LVPRO models)	Opens, shorts, reversals, split pairs, wiremap, propagation delay,skew, ohms. Feet and metricselectable
Advanced Cable Tests (All LVPRO models)	Length and distance to fault Adjustable and standard VOP settings for accurate length of all cables RLQ (Return Loss Quality)
Locating cable ends, split wires and switch ports (Al LVPRO models)	Wall jack identifiers (RJ45, coax, and mixed kits available) Speaker identification (Qty 8 available separately) Port blink. LVPRO lights the LED on the port switch
Device Tests (All LVPRO models)	Speakers: audible popper
Voltage Protection (All LVPRO models)	DC Volts: 100V AC Volts: 70
Length Measurement (All LVPRO models)	Max (all wire types): 1000 feet (305m) Min split pairs: 6 feet (2m) Min RLQ: 20 feet (7m) VOP calibration:Min cable sample 150 feet (50m)
Upgradeable (Model 20)	Length and distance to fault Adjustable and standard VOP settings for accurate length of all cables RLQ (Return Loss Quality)
Network Devices (Models 30 and 30SR)	10/100/1000 advertised speed and cable pairs used PoE pairs and cable pairs used CCTV camera video signal: measure peak to peak volts CATV (cable TV) requires min 30mV peak to peak signal Battery test:100mA loaded test for 12V alarm and other batteries
Printed Reports Models 30 and 30SR	Stores 250 cable test reports in memory
Battery	Type: 4 AA alkaline Life: 24 to 30 hours Auto power off: 30 minutes
Backlit Display	Off and 2 brightness levels
