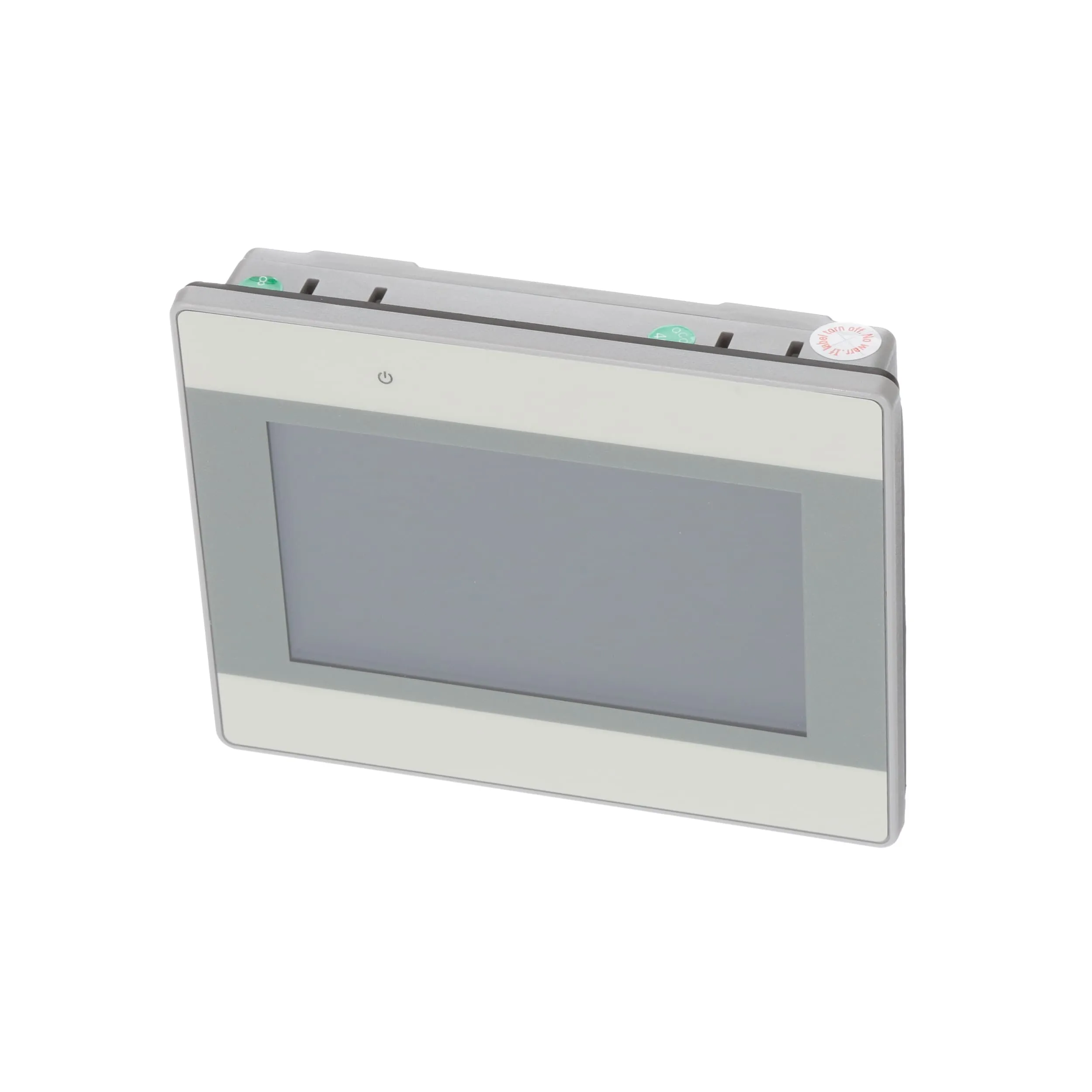

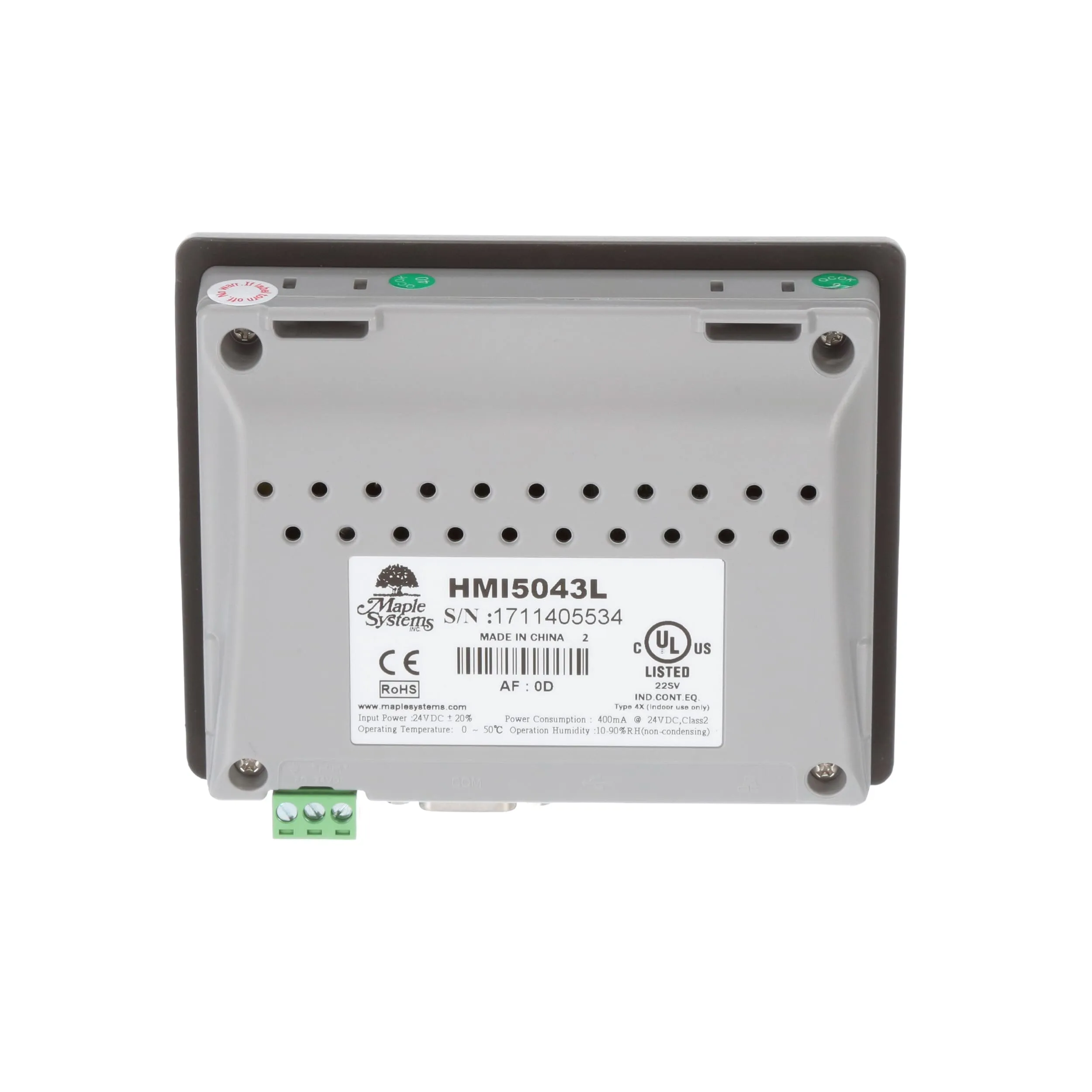

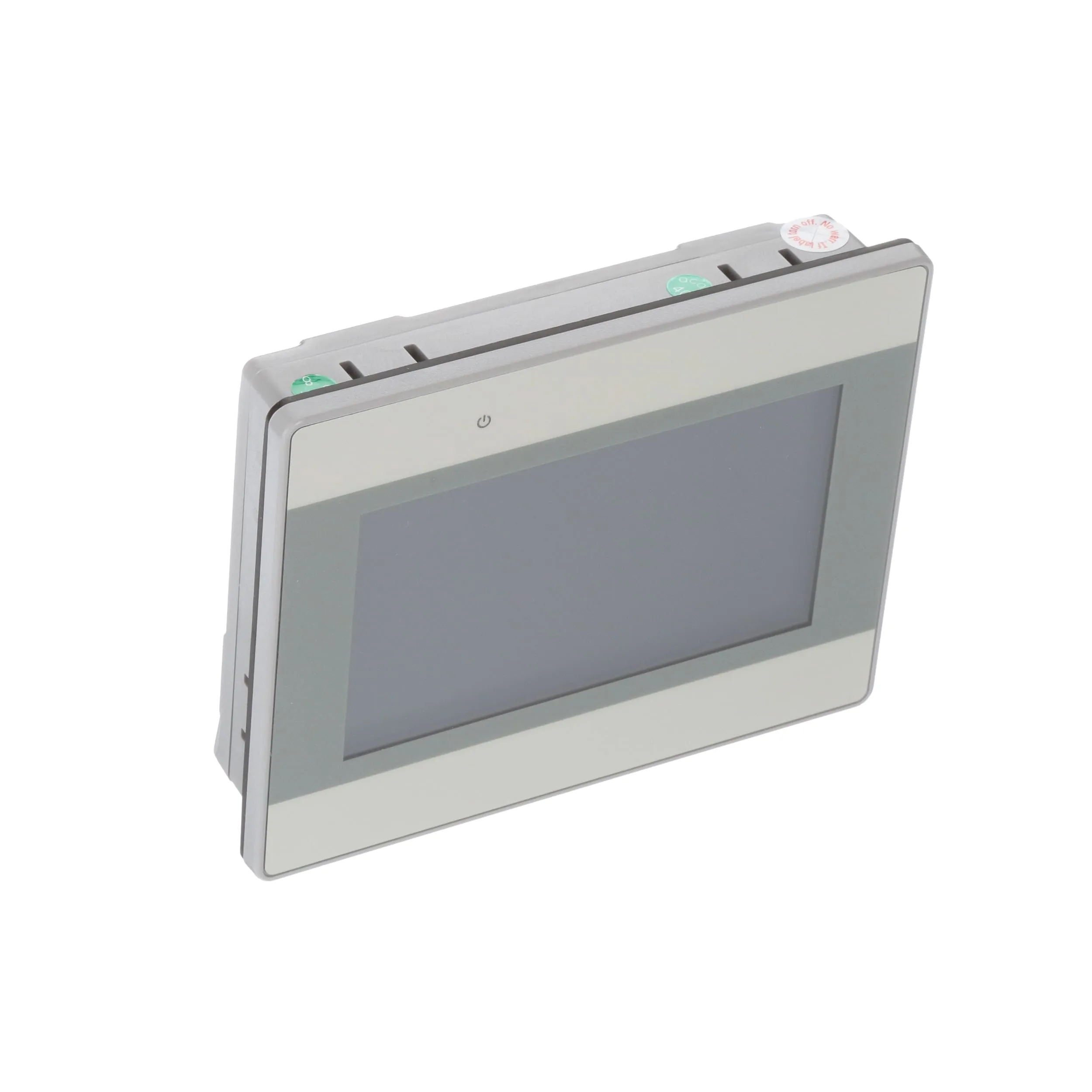

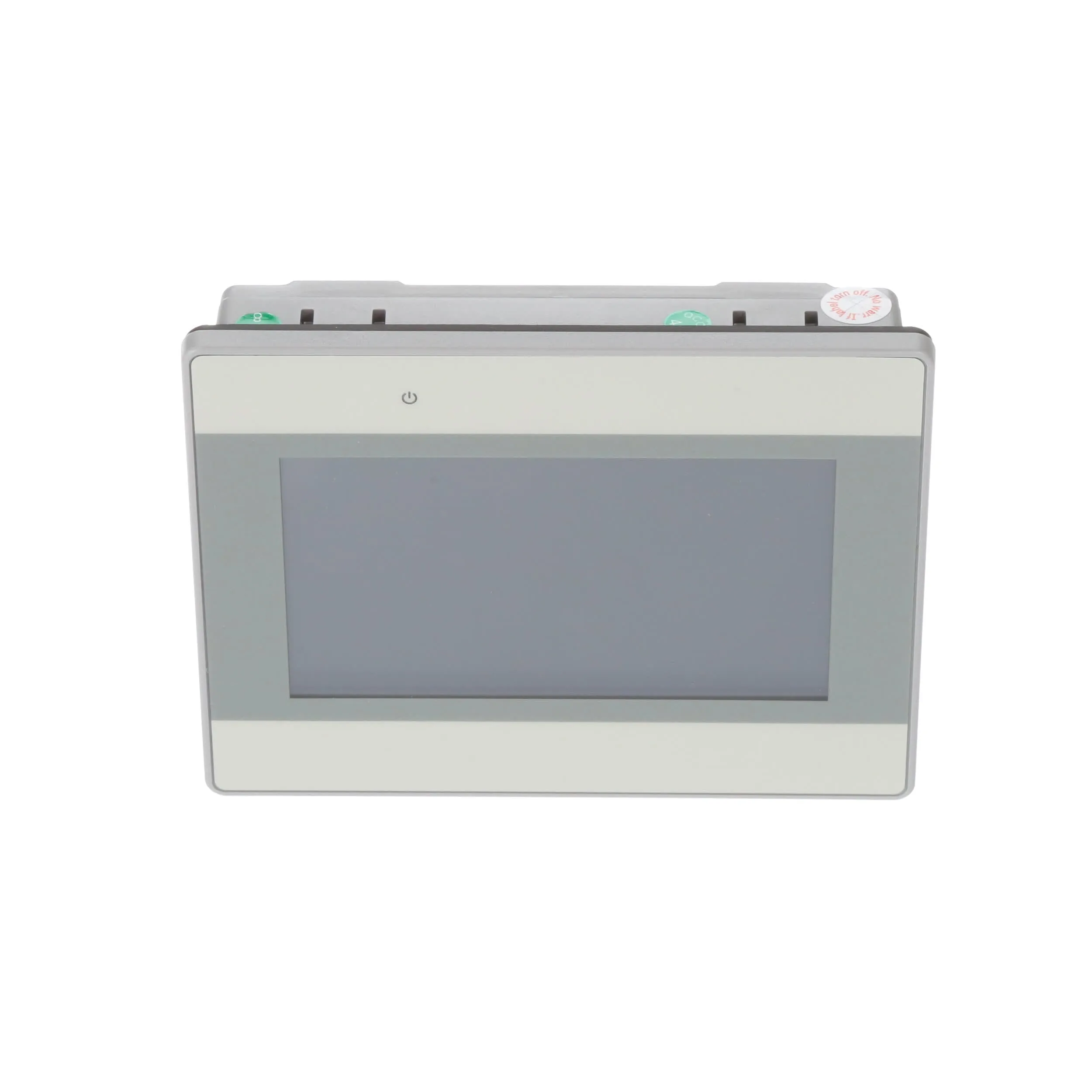

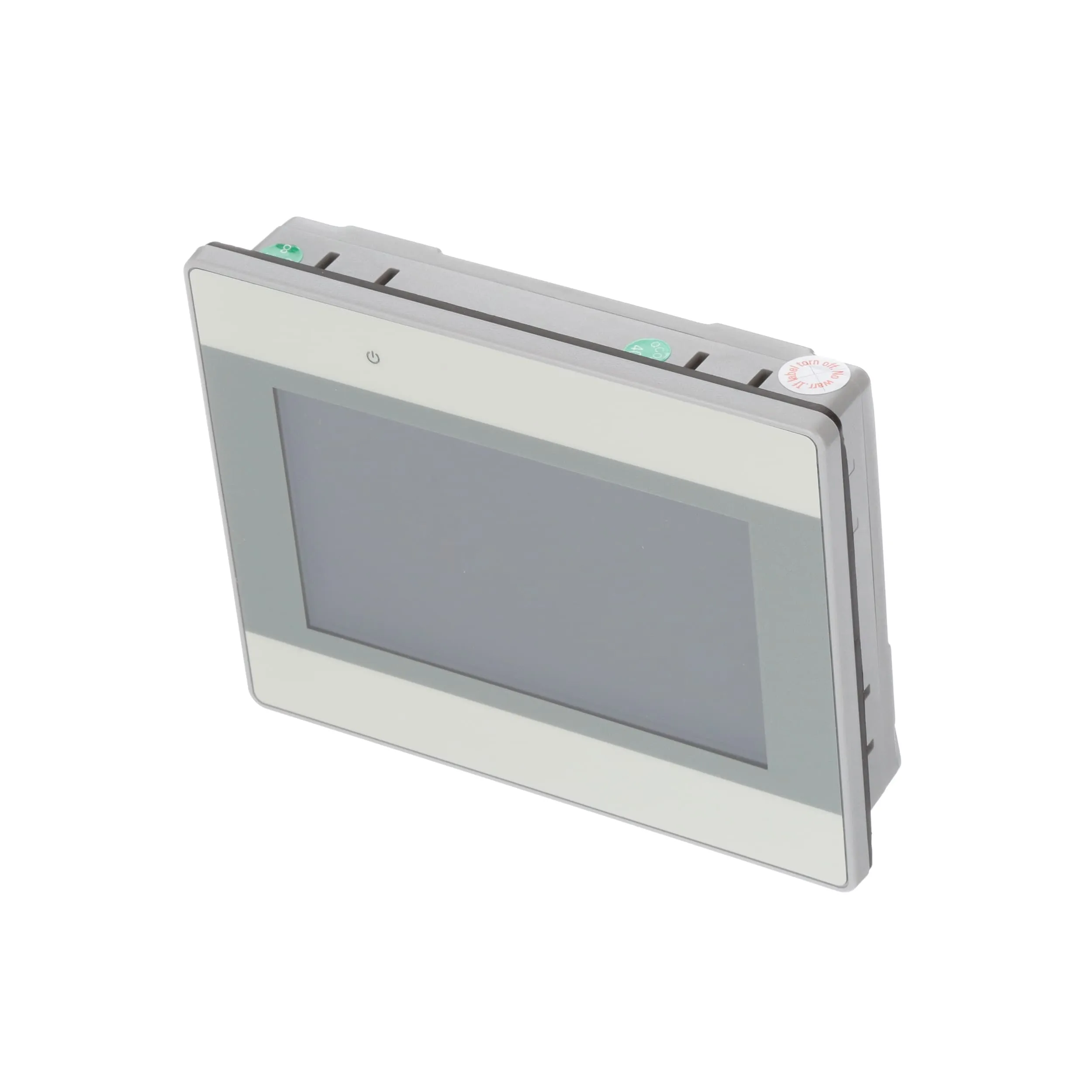

Name: Maple Systems HMI5043L
SKU: 504940

Product Details ＋

Product Attribute	Attribute Value
Backlighting	LED Backlight
CPU Speed	600 MHz
Display Colors	16M Color
Display Resolution	480 x 272 Pixels
Display Size	4.3 Inch Display
HMI Type	Touch Screen HMI
IP Rating	IP65
Memory	128 MB
Mounting Type	Panel Mount
Number of Ports	3 Port
Processor Type	32-bit RISC
Resolution, Display	480 × 272
Series
Size, Screen	4.3 in.
Supply Voltage	24VDC VDC
Technology	TFT LCD Display
Voltage Rating	24 VDC

Overview

Maple Systems Advanced HMI Series | HMI5043L — Modern Touchscreens, Intuitive Software and Functionality:

The HMI5043L functions as a full service HMI. Its touchscreen interface can easily replace analog switches/controls and the unit is programmed with easy-to-use EZwarePlus. The unit can be programmed to display in either landscape or portrait mode. A compact design makes it perfect for mounting in tight spaces.

The Advanced HMI series offers the best value in today’s HMI marketplace with benefits including modern touchscreens, intuitive software, and great functionality. Enjoy enhanced features, trusted performance, affordable pricing, and unparalleled support to meet your most demanding automation needs.

Features:

4.3” Light Grey Industrial HMI

480 x 272 Pixel Resolution

600MHz RISC CPU

Ethernet

1 Serial Port

Series Features:

4.3" to 15" models

Easy-to-use configuration software

Class I, Division 2 available

Wi-Fi option available

IP65/IP66/NEMA 4X, CE, and RoHS certified

Aluminum enclosures available

MQTT, OPC UA, & EasyAccess 2.0
