Product Details
＋
| GPU | AMD Radeonô RX 7600 XT Graphics Card |
| AMD RDNAô 3 Architecture | |
| Engine Clock | Boost Clock: Up to 2810 MHz |
| Game Clock: Up to 2539 MHz | |
| Stream Processors | 2048 |
| Compute Units | 32 CU |
| Infinity Cache | 32MB |
| Ray Accelerators | 32 |
| AI Accelerator | 64 |
| Memory Size/Bus | 16GB/128 bit GDDR6 |
| Memory Clock | 18 Gbps Effective |
| Displays | Maximum 4 Displays |
| Resolution | HDMIô: 7680◊4320 |
| DisplayPort 2.1: 7680◊4320 | |
| Interface | PCI-Express 4.0 x8 |
| Output | 2x HDMI |
| 2x DisplayPort | |
| BIOS Support | UEFI |
| Game Index | 1080P Ultimate |
| Sapphire Features | Fuse Protection |
| Dual-X Cooling Technology | |
| Intelligent Fan Control | |
| Precision Fan Control | |

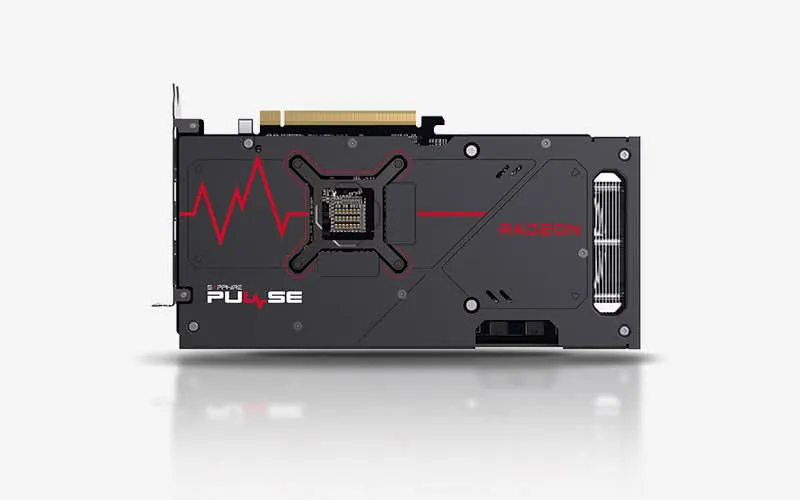

| Metal Backplate | |
| Two-Ball Bearing Fans | |
| Optimized Composite Heatpipe | |
| TriXX Supported | |
| TriXX Boost | |
| AMD Features | AMD RDNA 3 Architecture |
| DirectX 12 Ultimate Support | |
| AMD Smart Access Memory | |
| AMD Infinity Cache | |
| PCI Express 4.0 Support | |
| AMD FreeSyncô Technology | |
| DisplayPort 2.1 with DSC | |
| HDMI Support | |
| Video Streaming up to 8K | |
| AMD Radeon VR Ready Premium | |
| AMD Radeon Image Sharpening | |
| AMD Radeon Anti-Lag | |
| AMD Software: Adrenalin Editionô Application | |
| Game Driver Optimizations | |
| Cooling | 2 Fans |
| Form Factor | 2.2 slot, ATX |
| Dimension: 250(L)X 129.25(W)X 44.56 (H)mm | |
| Power Consumption | 192W Total Board Power |
| OS | LinuxÆ, WindowsÆ 10, and Windows 11. 64-bit operating system required |
| System Requirement | Minimum 600 Watt Power Supply |
| 2 x 8-pin Power Connector. | |
| PCI ExpressÆ based PC is required with one X16 lane graphics slot available on the motherboard. | |
| Minimum 8GB of system memory. 16GB recommended. |
